GOT3000 Series　GT37 model Remote Solutions

Remote Solutions

Improve work efficiency from startup to maintenance with remote monitoring.

Monitor according to your requirements

Monitor the site with remote visualization solutions suited for your application.

Application examples

Startup and Adjustment

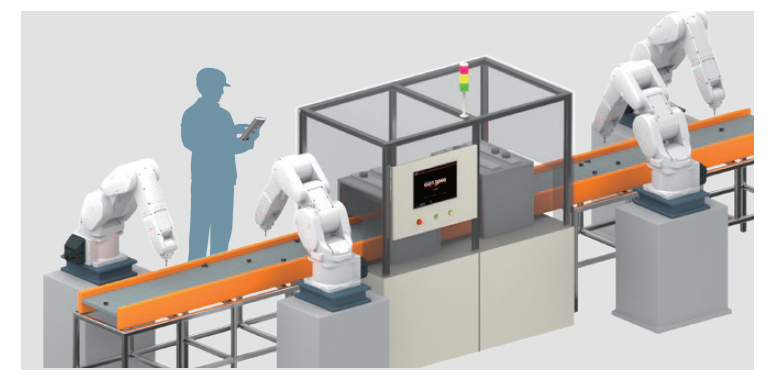

Adjusting the equipment remotely, away from the control panel

Adjusting the equipment remotely, away from the control panel

Multiple people working simultaneously

Multiple people working simultaneously

Operation

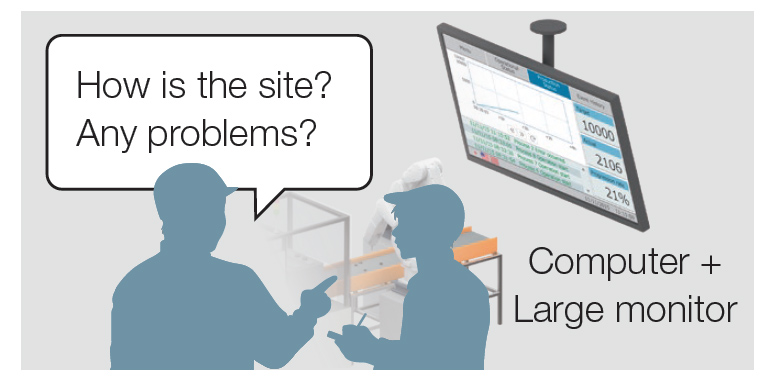

Visualizing with a large screen

Visualizing with a large screen

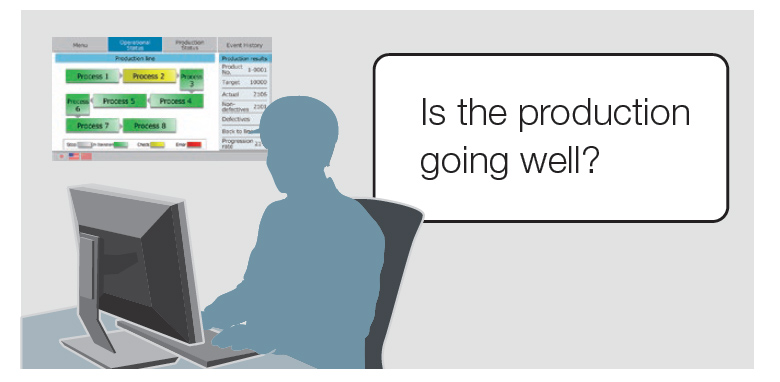

Checking from the office

Checking from the office

Maintenance
Checking from remote locations

Checking from remote locations

Equipment recovery while consulting the manual on the computer

Equipment recovery while consulting the manual on the computer

Remote monitoring comparison

●: Supported -: Not supported

Item Monitor and Operate GOT3000 or GT SoftGOT3000 from a Computer or a Mobile Device Monitor the devices connected to GOT from SoftGOT
GOT Mobile Function VNC Server Function SoftGOT-GOT Link Function
GOT SoftGOT
Simultaneous Client
Connections		 Max. 5 Max. 15 1 Max. 7
(when using the GOT network interaction function)
Display Different
Screens for each Client		 ● -
Display GOT screen as is		 ●
Simultaneous Operation Prevention
(Exclusive Control of
Operational Authority)		 ● ● ●
Screen Creation for
Remote Monitoring		 Required*1 Not required Not required
Viewing Application Web browser VNC viewer*2 SoftGOT
License Register to GOT Register to SoftGOT Register to GOT Register to SoftGOT*3
  • *1The screen is created using GT Works3 (GT Designer3). Screens designed for GOT are reusable.
  • *2Regarding the VNC client software that has been operation-verified, please refer to the technical bulletin
  • *3GT SoftGOT3000 license is required.

Remotely monitor the site using web browser

UpgradedGOT Mobile License required

END-USER SOFTWARE LICENSE AGREEMENT GOT Activation File Request Form
  • The equipment can be monitored and operated through a web browser on a computer or a mobile device.
  • Monitoring the equipment through a web browser eliminates the need for specific software applications or hardware. This allows the system to be built without incurring additional costs.

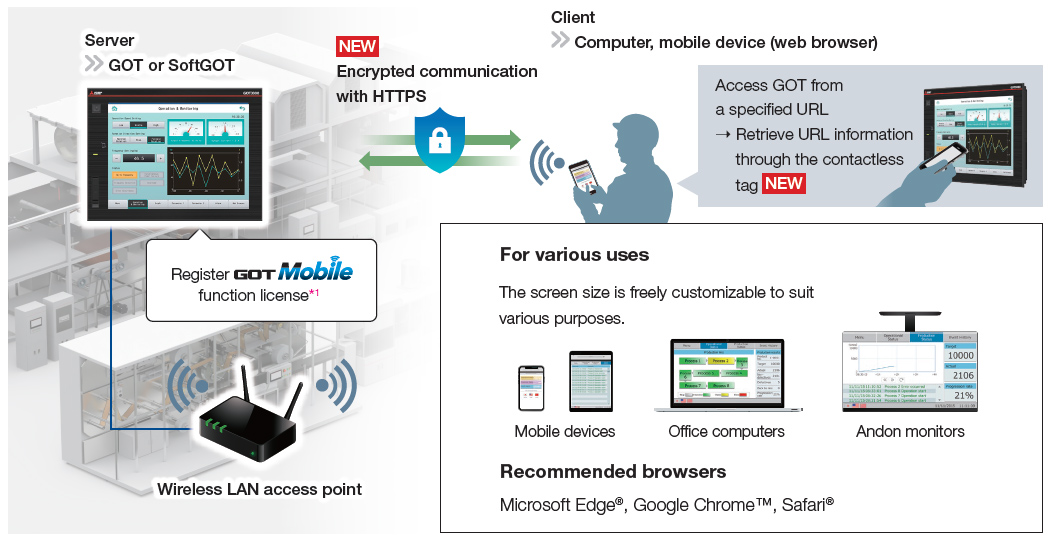

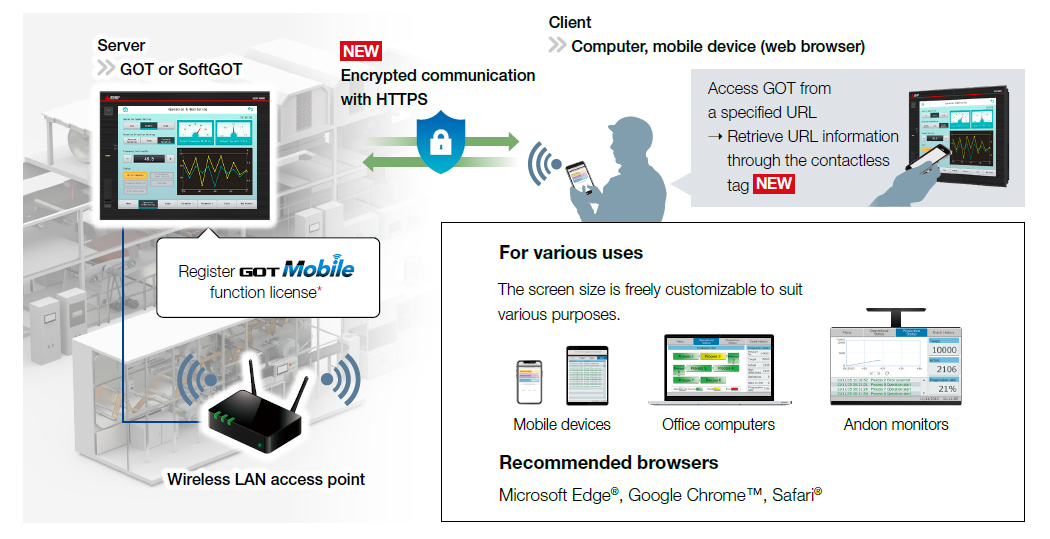

System configuration

System configuration
  • *By registering one license on GOT or SoftGOT, GOT can be simultaneously connected by up to 5 clients, and SoftGOT can be simultaneously connected by up to 15 clients.
Notifications by Sound and Vibration
Achieved at no cost by using the free app

Mobile application Pocket GOT

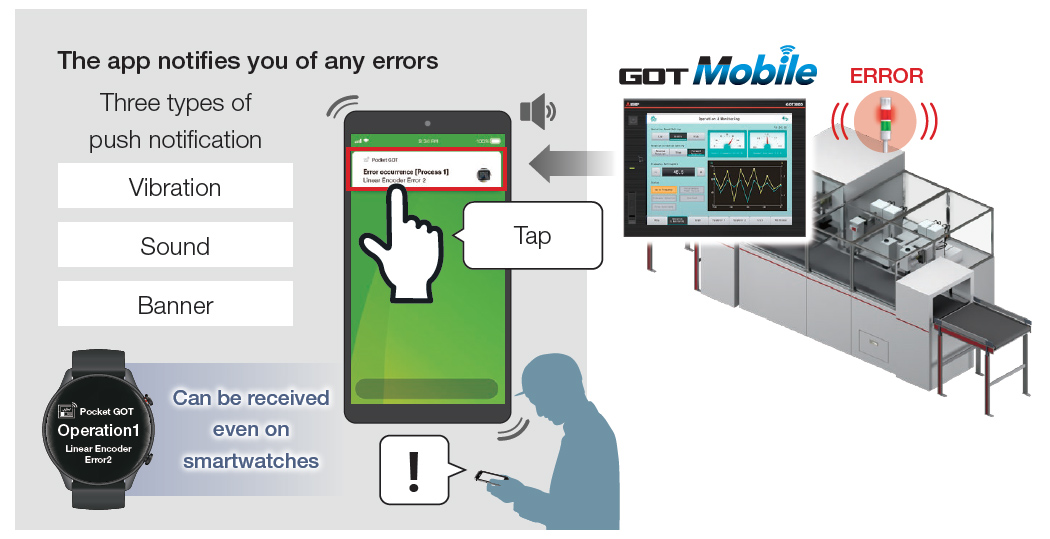

  • This is a mobile app for GOT. When installed on a mobile device, the app sends push notifications with sound or vibration if an error occurs in the monitored GOT. Important information won’t be missed.
  • With GOT, you can easily build a system that notifies of errors.
  • In the mobile app Pocket GOT, you can register up to 20 GOTs to be monitored.

Achieved at no cost by using the free app

Achieved at no cost by using the free app

[Free]
Download the mobile app here

[Free] Download the mobile app here

Easy monitoring with the same screen as GOT

UpgradedVNC Server License required

END-USER SOFTWARE LICENSE AGREEMENT GOT Activation File Request Form

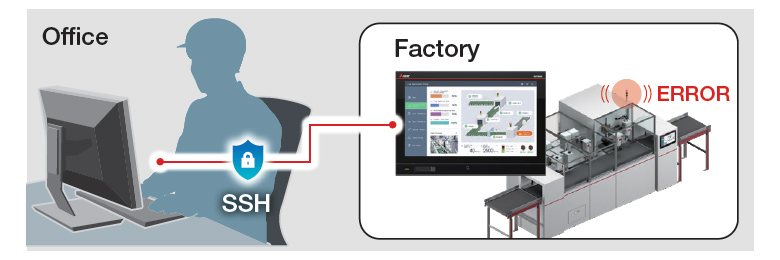

  • The GOT screen at a remote site can be displayed and operated as it is on a computer or a mobile device.
    There is no need to create a separate display screen.
  • The GOT screen can be checked directly from the office when a problem occurs, allowing the on-site situation to be quickly understood and promptly addressed.

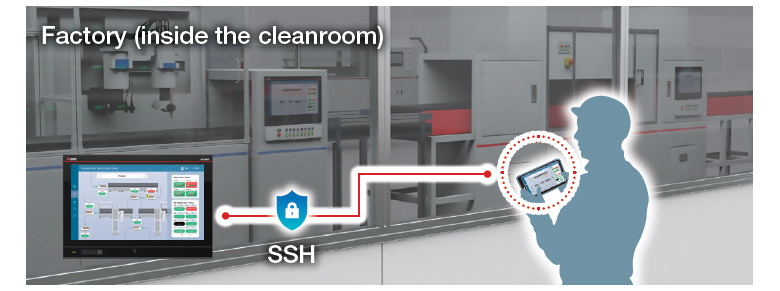

  • NEWSSH port forwarding communication is supported, enabling more secure remote access through an encrypted communication route.

Remote monitoring from the office

Remote monitoring from the office

Remote monitoring from the office

Remote monitoring from the office

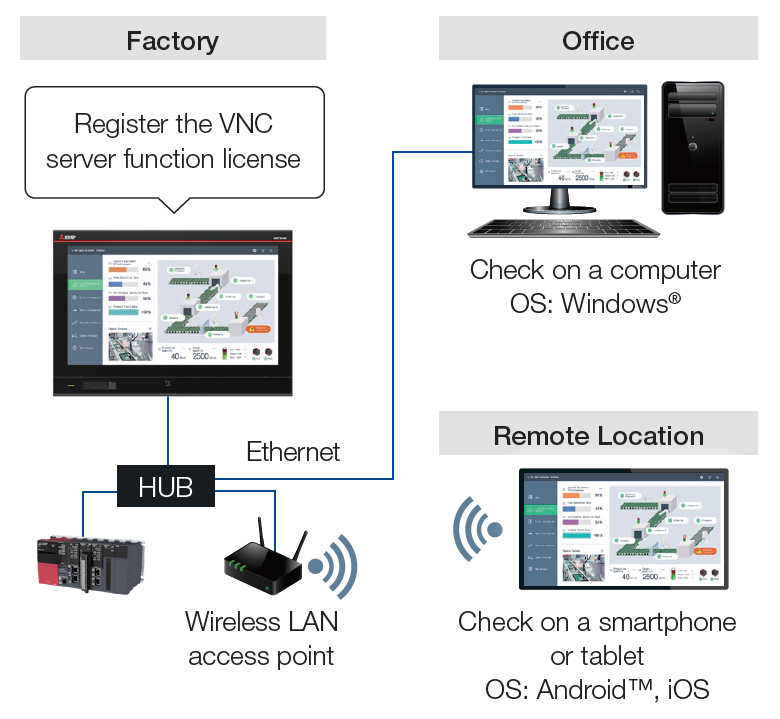

System configuration

System configuration

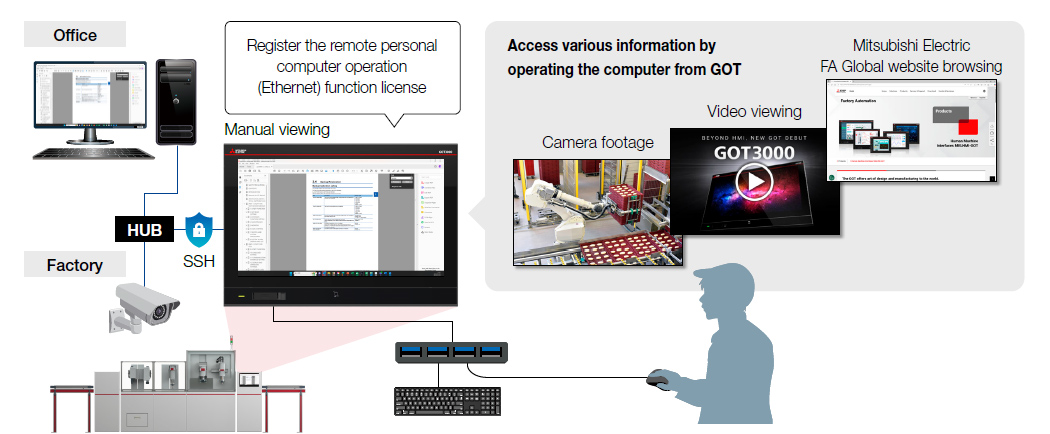

Access computer information from GOT

UpgradedRemote Personal Computer Operation (Ethernet) License required

END-USER SOFTWARE LICENSE AGREEMENT GOT Activation File Request Form

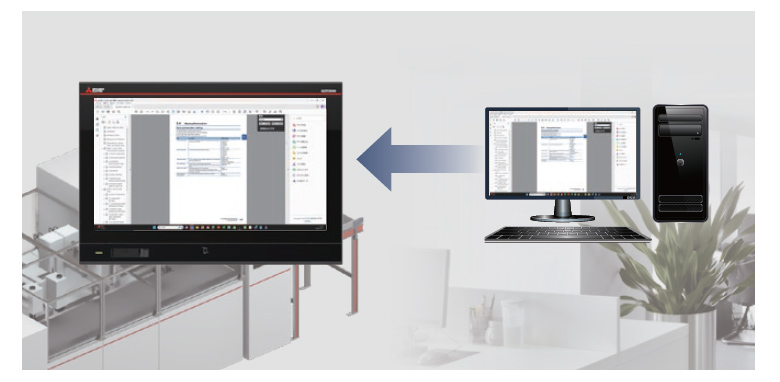

  • The computer can be remotely operated from GOT, making manuals and drawings in the computer accessible at the production site.
  • When a problem occurs, you can refer to the recovery manual on the computer to proceed with recovery work, enabling swift troubleshooting.
  • NEWSSH port forwarding communication is supported, enabling more secure remote access through an encrypted communication route.
Access computer information from GOT

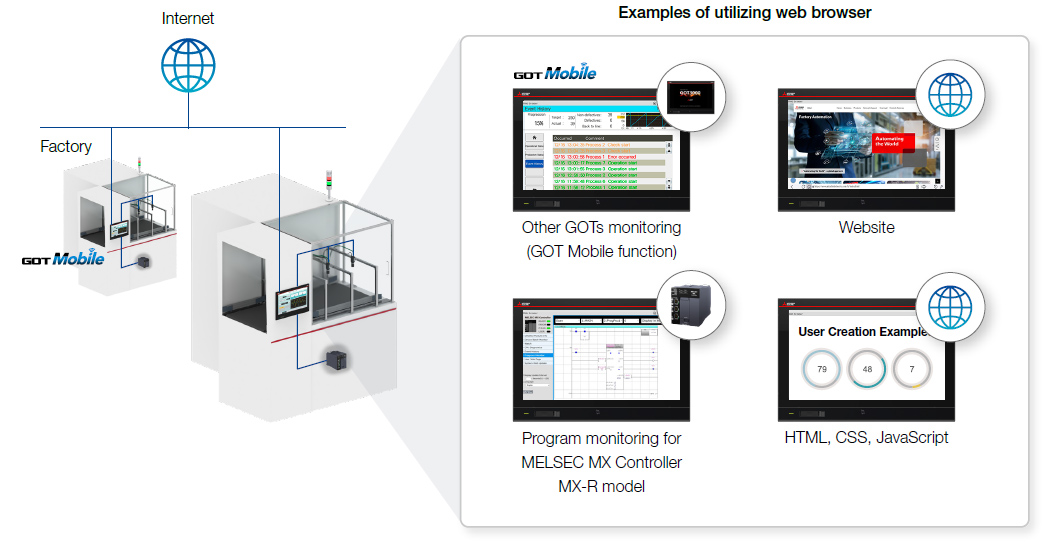

Configure and monitor controllers with GOT

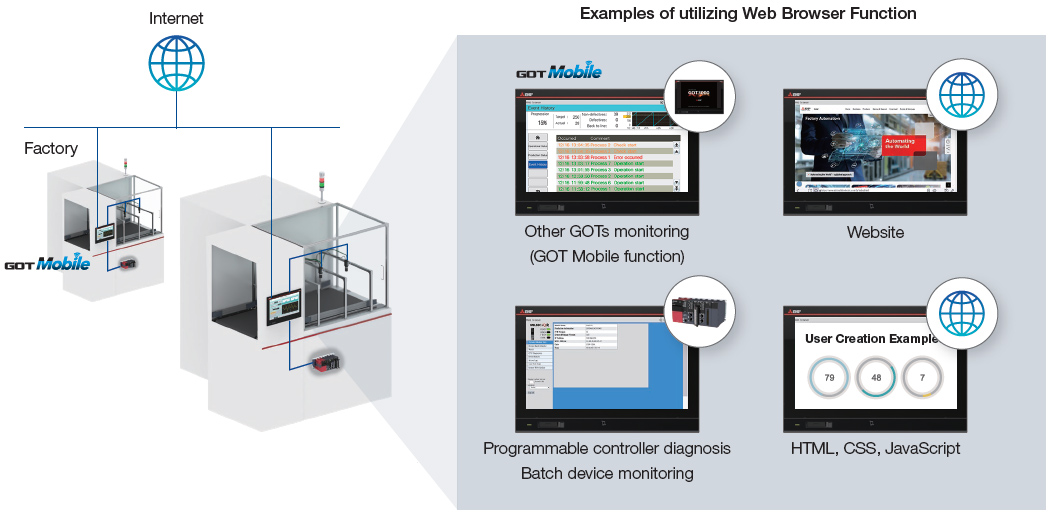

NEWWeb Browser

GOT3000 enables you to monitor and configure controllers that have a web server function. It also supports browsing websites.

Web Browser

For devices that have been tested for compatibility, please refer to the technical bulletin
