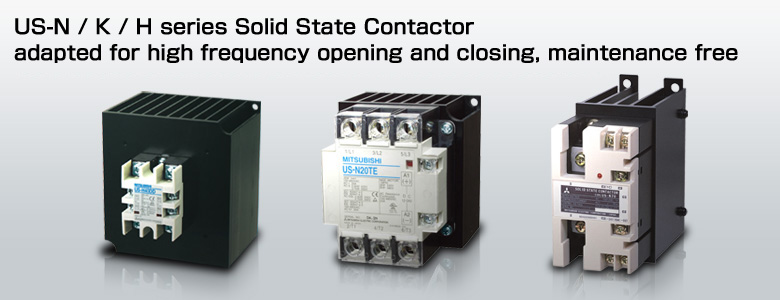

Solid State Contactors

Solid State Contactors Features

Realizes a long product life when used for frequently switching applications by using a power semiconductor element.
No switching noise and clean running without generating dust due to wear.

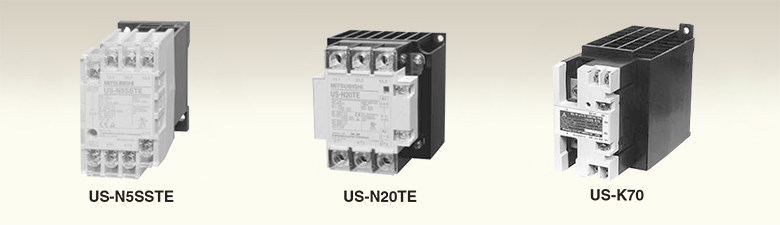

US-N/K Series

US-N/K Series (for motor/heater load)

• High-accuracy opening/closing, maintenance-free
  With no electrical or mechanical wear sections, this type is a suitable maintenance-free selection for high-accuracy opening/closing (motor, heater, light, capacitor switching, etc.)
• No sound noise, clean operation
  The best suitable for applications that reduce to avoid sound noise (Ex.: hotels, hospitals, offices, or clean rooms, etc.).
• Applicable to a wide range of main circuit voltage (US-N20(TE) to US-N50(TE))
  Can be used with a wide main voltage range from 100 to 480VAC.
• Conformity to International Standards (US-N Series)
  The standard model complies with or is approved to be compliant with not only domestic standards but also various overseas standards.
• Standard installation protection cover for live part location to improved safety (USN Series)
  A live part location protection cover, with finger protection complying with DIN and VDE Standards, is provided as a standard to improve safety.
• Various line up and series
  [Heater load]
  2-circuit, 3-circuit integrated type
  Cycle control type power adjuster
  [Motor load]
  2-circuit, 3-circuit integrated type
  [Current frame]
  200VAC 5A to 200A frame
  400VAC 20A to 200A frame

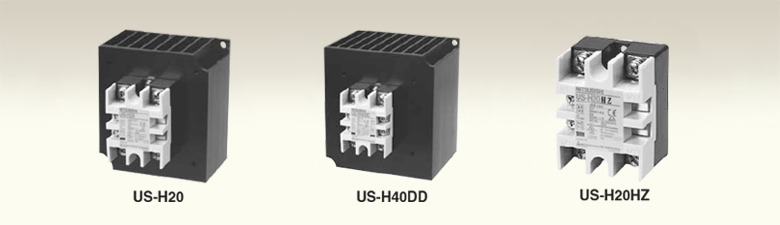

US-H Series

US-H Series (for heater load)

• Best suitable for heater loads
  Suitable for high-accuracy opening/closing applications such as injection molding machines and semiconductor manufacturing machines, etc.
• Applicable to a wide rang of main circuit voltage
  Can be used with a wide main voltage range from 24 to 480VAC.
• Conformity to International Standards
  The standard model complies with or is approved to be compliant with not only domestic standards but also various overseas standards.
• Live part location protection cover available for improved safety (option)
  A live part location protection cover (Type UN-CV501US) can be easily mounted after the control cabinet is mounted to improve safety.

Various Variations

For motor/heater load (3-pole 2-element type)	For motor/heater load (3-pole 3-element type)	For motor/heater load (single-pole type)	For heater load (Batch control)	For heater load (Individual control)
