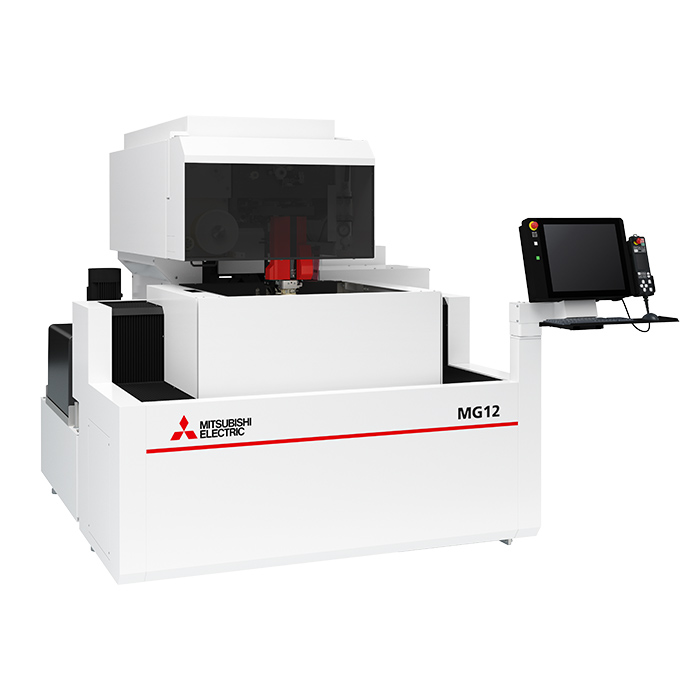

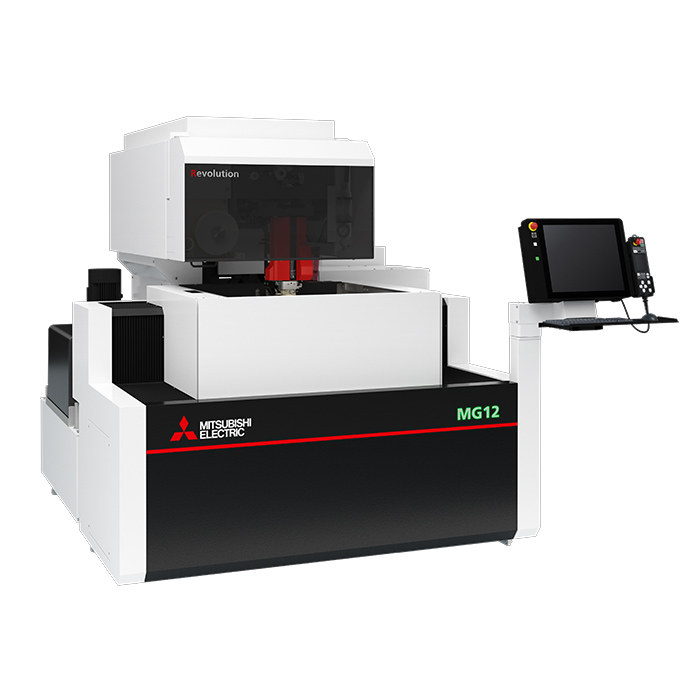

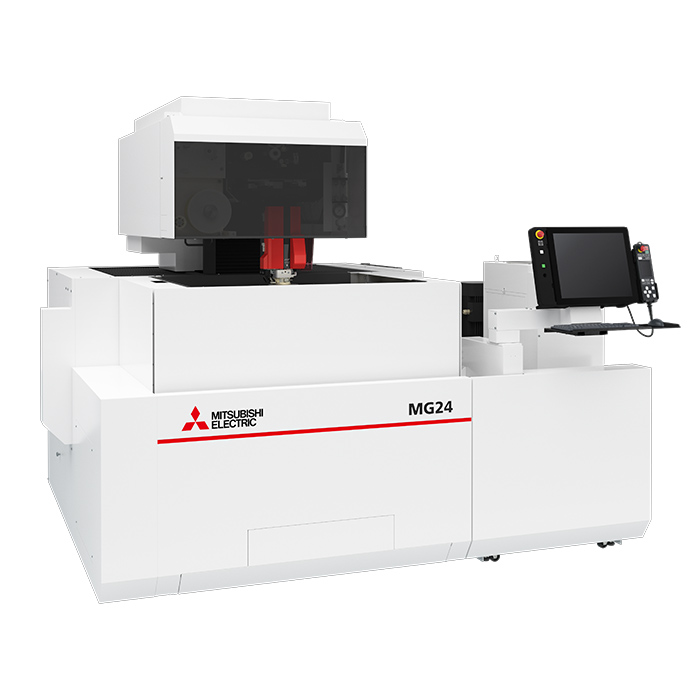

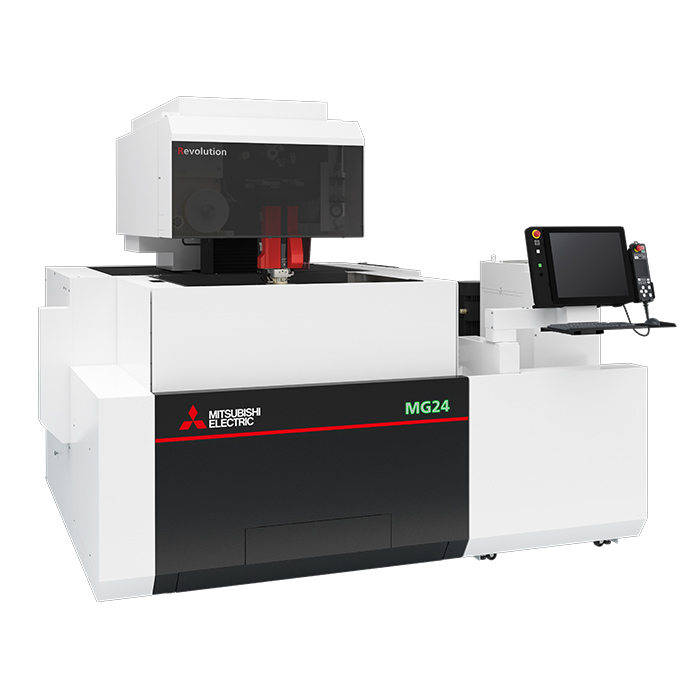

Wire-cut Electrical Discharge Machines MG-R series・MG series
Concept
Easy for everyone to perform high-quality machining
Enables both experts and beginners to machine simple or complex parts easily.
Issues at production sites
Human technology and know-how are required for machining
- ▶Adjustments for each machining process (setup/thickness) are required,and machining does not become stable.
- ▶Adjusting corner accuracy is difficult unless an expert.
- ▶Know-how is required to use many functions.
Advantages of the new technology
Stable high-quality machining is possible with simple setting
- ▶Machining conditions adjustment is not required regardless of setup and thickness.
- ▶As for machining that machining accuracy is 5μm or less , it is not required to adjust the machining conditions even in complex shapes,stable machining is possible using standard machining conditions.
- ▶Intuitive and easy operation is possible.
1 Push Technology

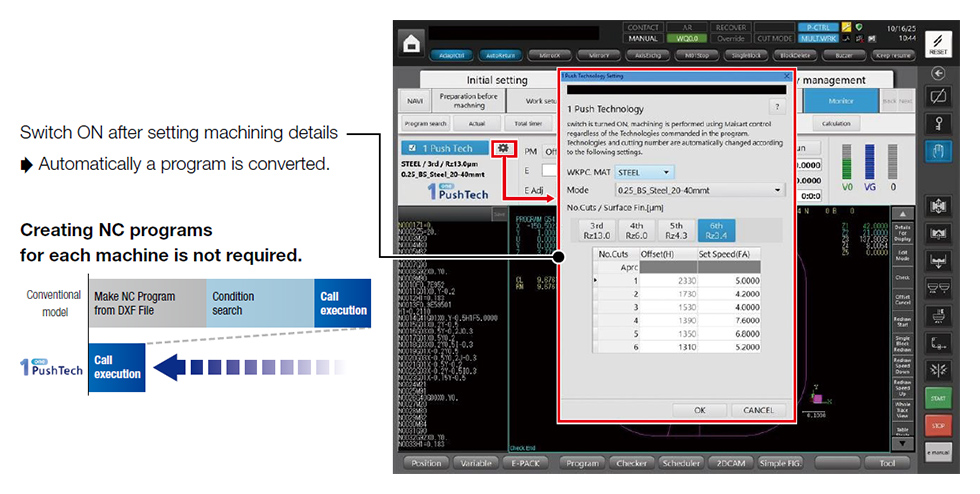

- With just one switch ON, a program is automatically converted into Maisart machining conditions.
- Changing the number of selected passes and machining condition's is easy.
- Programs from our other machines* can be used as they are.
Older models are HA (32bit) and later
For more details on other features, please see the catalog.
Non-Stop Machining
Increase productivity with less machine down time.
Simple maintenance intervals improves overall efficiency.
Issues at production sites
Production = High Maintenance
- ▶Frequent maintenance for automatic wire threading unit is required.
- ▶Cleaning the working tank is hard.
Advantages of the new technology
Realize stable operation with simple maintenance

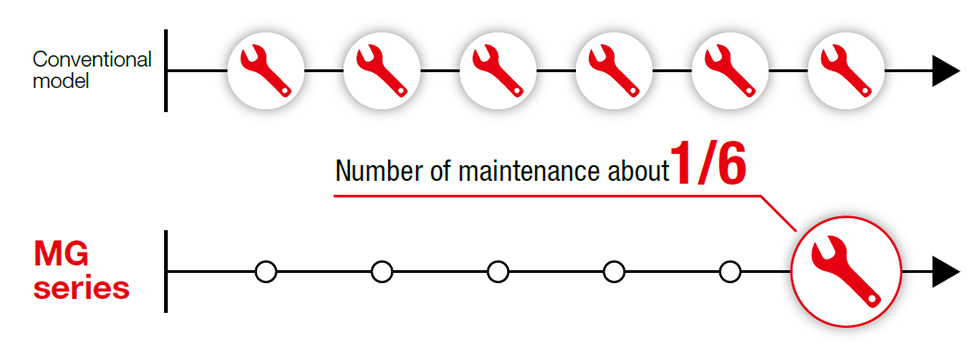

- ▶High wire threading performance can be maintained with fewer maintenance cycles.

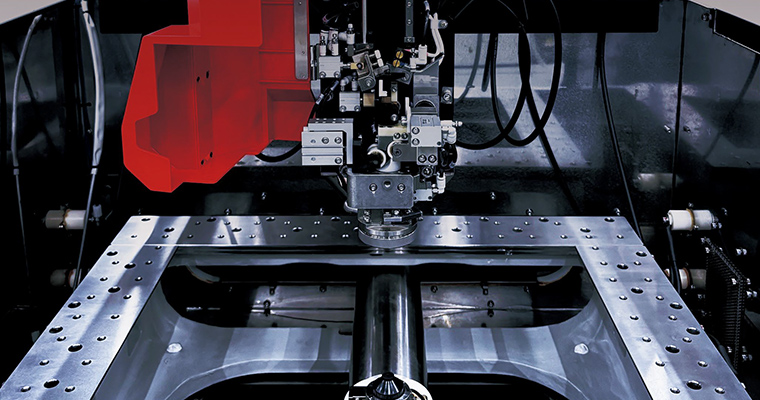

- ▶Largely simplified working tank makes maintenance easy.

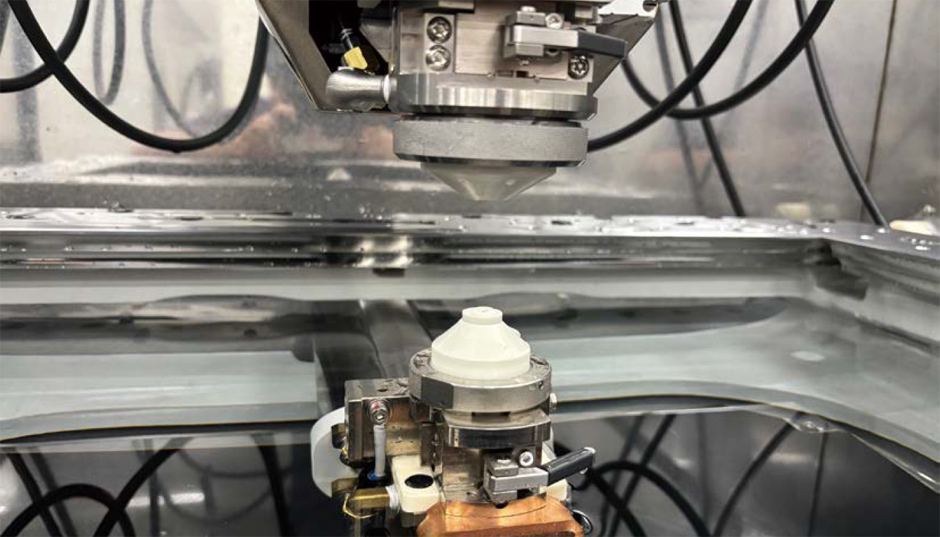

Automatic wire threading (iAT)
- New wire feeding unit and lower wire feeding power improvement maintain wire threading performance even if the machine gets dirty.
⌀0.3 wire electrode is excluded

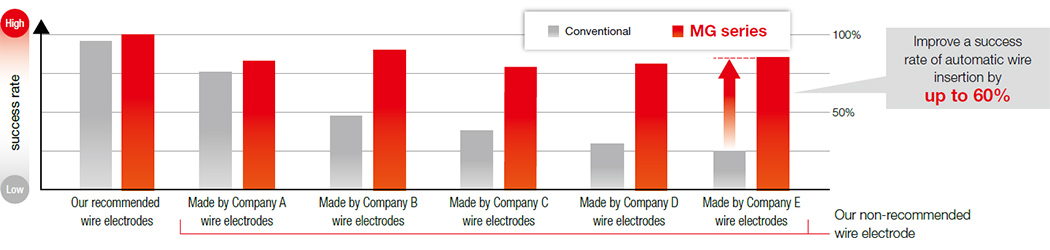

- “New wire electrode annealing control” realizes stable wire threading regardless of wire conditions.
For more details on other features, please see the catalog.
Energy saving (GreenTechnology)
Issues at production sites
Electricity bills are high, want reduce cost as much as possible
Advantages of the new technology

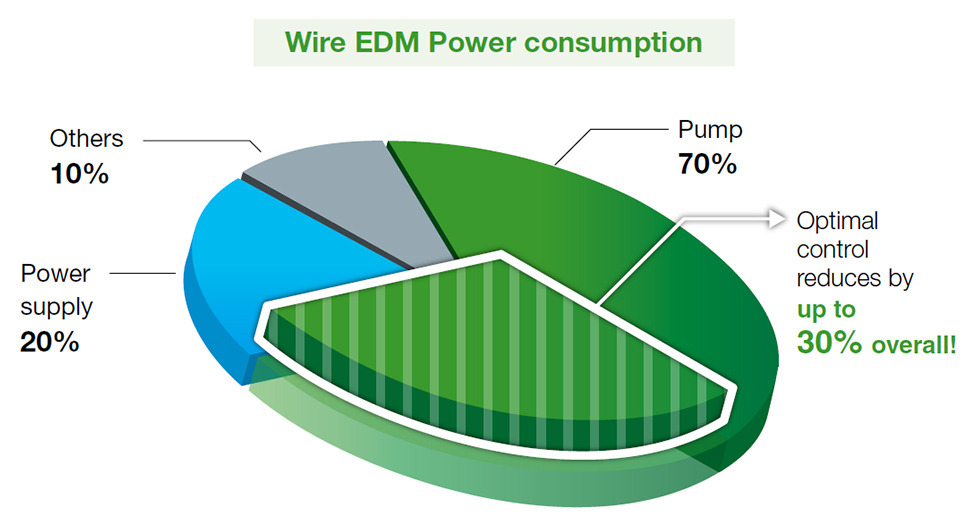

Reduces power consumption up to 30%
Under our specified conditions
Energy saving control
Energy saving pump control
- Optimally control pump's operating rates according to conditions.
- Reduces power consumption even if operating machine in the same way as before.

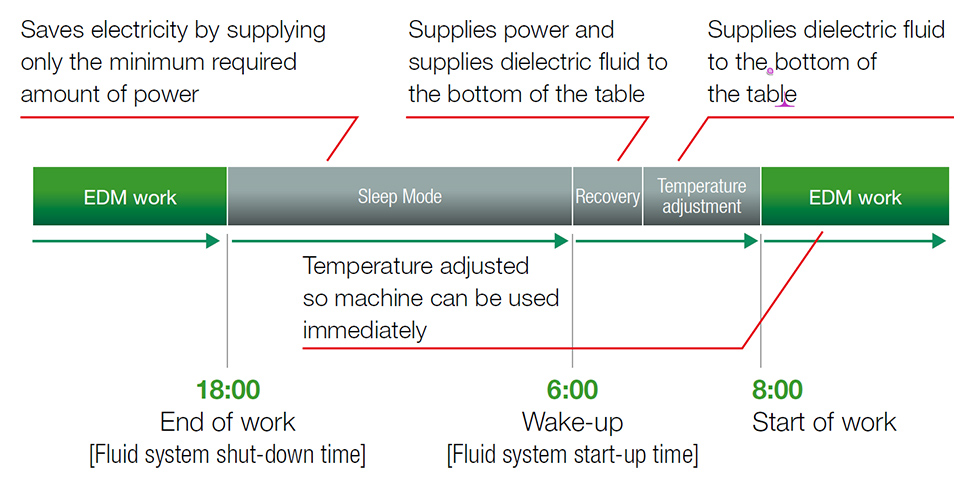

Sleep mode
- Amount of energy consumed is greatly reduced as result of using an automated pump-shut-off system.
For more details on other features, please see the catalog.
MG Series Promotion
[PV] Wire-cut EDM MG Series | MITSUBISHI ELECTRIC
The future of technology for everyone
Mitsubishi Electric EDMs complement human technology and perform high accuracy machining for everyone.
They are next-generation machining solutions that balance the inheritance and evolution of technology.
Introduction to the MG Series Wire EDM
