Intelligence and AI Functions MELFA Smart Plus
Preventive maintenance function
The preventive maintenance function lets you know beforehand when parts should be maintained or replaced.
Maintenance is now even more efficient.

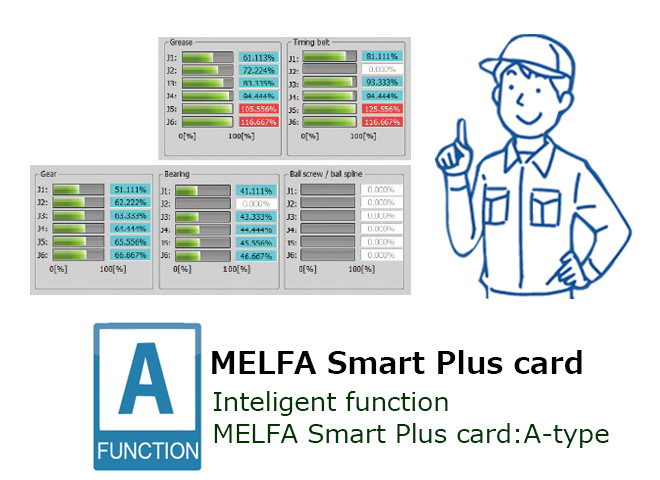

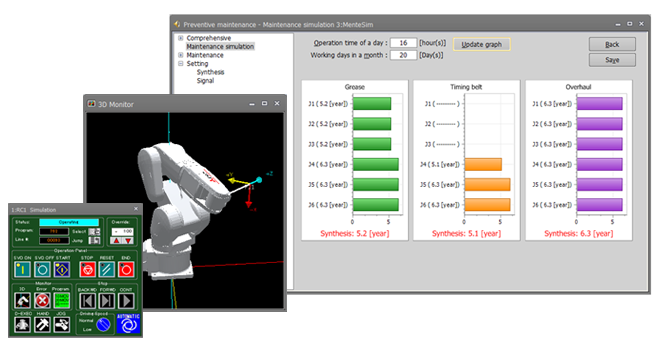

Maintenance simulation
The preventive maintenance function estimates the recommended maintenance period and when to replace consumable parts.
This is done by observing repeat patterns in sample programs used by the robot or executed in the simulator in RT Toolbox3.
- Applicable parts: Reduction gears, encoders, batteries.
- Grease replenishment period (per axis)
- Timing belt replacement period (per axis)
- Recommended maintenance period for overhaulable parts (per axis)(*1)
*1) For overhaulable parts such as reduction gears, bearings, ball screws, the internals of ball splines, the part which needs to be overhauled the earliest will be displayed.

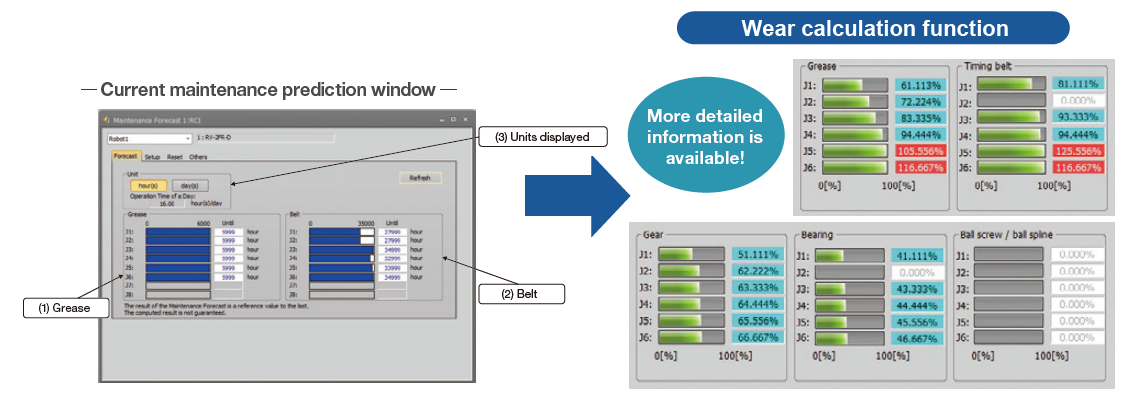

Wear calculation function
- Applicable parts: Reduction gears, encoders, batteries.
- A function that calculates the wear of components(*2) from the operational status (current, load, etc.) based on the robot's movements and posture.
- It also calculates the time left until inspection, maintenance and overhaul periods.
- It is possible to check more detailed information than the "Maintenance forecasting".
*2) The wear ratio of each part is a reference value to assist the maintenance and inspection schedule calculated based on the robot's operational status. It does not guarantee that this is the actual remaining life of the part.
Supported robots
Some joints do not support the fault detection function.
| Robot Type | Robot controller | RT ToolBox3(*3) | |
|---|---|---|---|
| FR series | RV-2FR(L), RV-4FR(L), RV-7FR(L/LL), RV-13FR(L), RV-20FR RH-3FRH, RH-6FRH, RH-12FRH, RH-20FRH, RH-3FRHR |
CR800-D/R/Q Ver.A3 or later. | Ver.1.30G or later |
| CR series | RV-8CRL RH-3CRH, RH-6CRH |
CR800-D Ver.A5p or later | Ver.1.90U or later |
Axes used in the maintenance simulation/monitored
Axes used in the maintenance simulation/monitored by the wear calculation function
*Standard robots only
(●：Used/monitored, —：Not used/monitored )
RV-2FR / 2FRL
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | J5 axis | J6 axis | |
| Consumable part | Grease | ● | ● | ● | ● | ● | ● |
| Timing belt | ● | ● | ● | ● | ● | ● | |
| Overhaulable part | Reduction gear | ● | ● | ● | ● | ● | ● |
| Bearing | ● | ● | ● | ● | ● | ● | |
| Ball screw | — | — | — | — | — | — | |
| Ball spline | — | — | — | — | — | — | |
RV-4FR / 4FRL / 7FR / 7FRL
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | J5 axis | J6 axis | |
| Consumable part | Grease | ● | ● | ● | ● | ● | ● |
| Timing belt | ● | — | ● | ● | ● | ● | |
| Overhaulable part | Reduction gear | ● | ● | ● | ● | ● | ● |
| Bearing | ● | — | ● | ● | ● | ● | |
| Ball screw | — | — | — | — | — | — | |
| Ball spline | — | — | — | — | — | — | |
RV-13FR / 13FRL / 20FR / 7FRLL
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | J5 axis | J6 axis | |
| Consumable part | Grease | ● | ● | ● | ● | ● | ● |
| Timing belt | — | — | — | ● | ● | ● | |
| Overhaulable part | Reduction gear | ● | ● | ● | ● | ● | ● |
| Bearing | — | — | — | ● | ● | ● | |
| Ball screw | — | — | — | — | — | — | |
| Ball spline | — | — | — | — | — | — | |
RV-8CRL
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | J5 axis | J6 axis | |
| Consumable part | Grease | ● | ● | ● | ● | ● | ● |
| Timing belt | — | — | — | ● | ● | — | |
| Overhaulable part | Reduction gear | ● | ● | ● | ● | ● | ● |
| Bearing | — | — | — | ● | ● | — | |
| Ball screw | — | — | — | — | — | — | |
| Ball spline | — | — | — | — | — | — | |
RH-3FRH / 6FRH / 12FRH / 20FRH, RH-3CRH / 6CRH
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | |
| Consumable part | Grease | ● | ● | ● | — |
| Timing belt | — | — | ● | ● | |
| Overhaulable part | Reduction gear | ● | ● | — | — |
| Bearing | — | — | ●(*1) | ● | |
| Ball screw | — | — | ●(*2) | — | |
| Ball spline | — | — | — | ●(*2) | |
*2: The RH-3FRH, RH-3CRH, and RH-6CRH use ball screw splines. However, this function assumes that the J3 axis uses a ball screw, and the J4 axis uses a ball spline.
RH-3FRHR
| Joint axis | J1 axis | J2 axis | J3 axis | J4 axis | |
| Consumable part | Grease | ● | ● | ● | — |
| Timing belt | ● | ● | ● | ● | |
| Overhaulable part | Reduction gear | ● | ● | — | — |
| Bearing | ● | ● | — | ● | |
| Ball screw | — | — | ●(*3) | — | |
| Ball spline | — | — | — | ●(*3) | |
