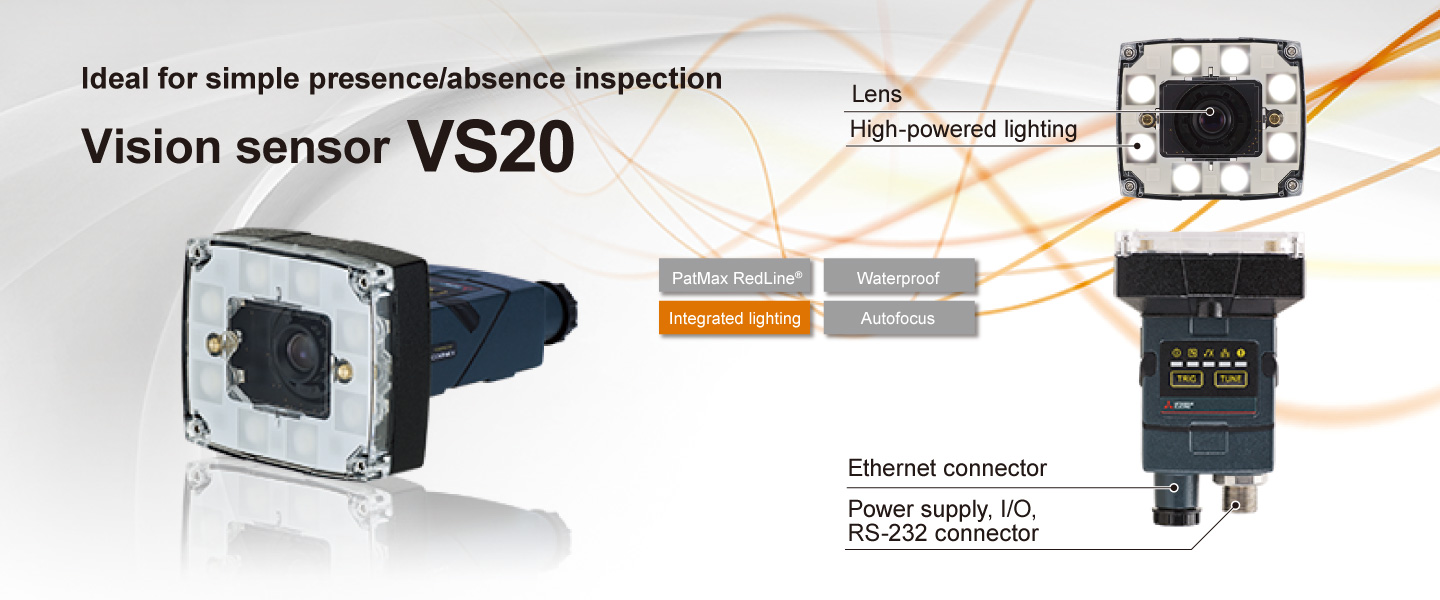

Vision Sensor Features Vision Sensor VS20
This Series has been discontinued in September 2025.
Field customizable to your applications
Compact palm-sized

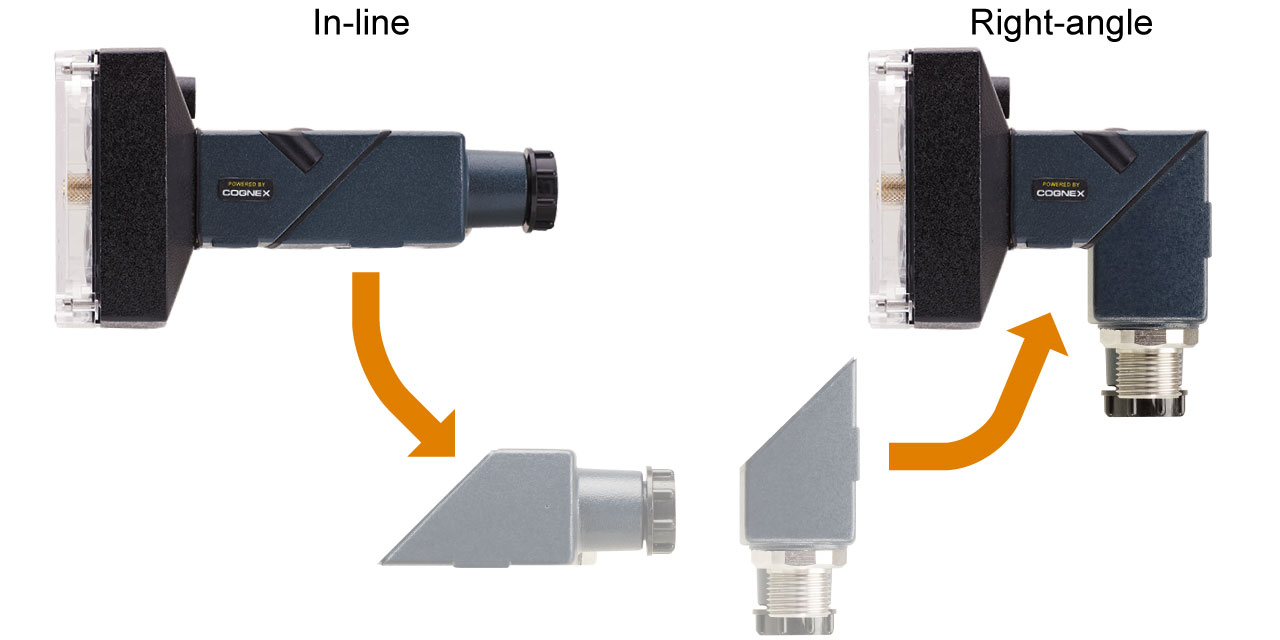

Integrated compact size ideal for installation in space-constrained production lines. The configuration can be changed according to the installation space.
Product lineup
Different models according to applications are available.
| Item | VS20M-11F310 | VS20M-12F410 | VS20C-12F410 | VS20M-13F410 | VS20C-13F410 | |
|---|---|---|---|---|---|---|
| Imagery | Monochrome | Monochrome | Color | Monochrome | Color | |
| Image resolution (pixel) |
640 × 480 (standard) | ● | ● | ● | ● | ● |
| 640 × 480 (2 × image magnification) | — | ● | ● | ● | ● | |
| 800 × 600 (2 × image magnification) | — | — | — | ● | ● | |
| Maximum image acquisition speed | (frame/s) | 40 | 75 | 55 | 75 | 55 |
| Processor performance*1 | (times) | 1 | 2 | 2 | 2 | 2 |
| PatMax RedLine® | — | — | — | — | — | |
| Spreadsheet | — | — | — | — | — | |
| EasyBuilder | ||||||
| Location tools | Pattern | ● | ● | ● | ● | ● |
| Edge, edge intersection, and circle*2 |
— | — | — | ● | ● | |
| Presence/ absence tools |
Pattern | ● | ● | ● | ● | ● |
| Color pixel count, brightness, contrast |
— | ● | ● | ● | ● | |
| Edge, circle | — | — | — | ● | ● | |
| Measurement tools | Distance, angle, and diameter of circle |
— | — | — | ● | ● |
| Counting tools | Pattern, edge | — | — | — | ● | ● |
- *1.Considering VS20M-11F310 as 1.
- *2.Location information detected can be used for inspection by other tools.
- *3.Please refer to Product list for details.
Working distance
The distance from a lens to an inspection target is referred to as "working distance", and an area where a vision sensor can see at that distance is referred to as "field of view".

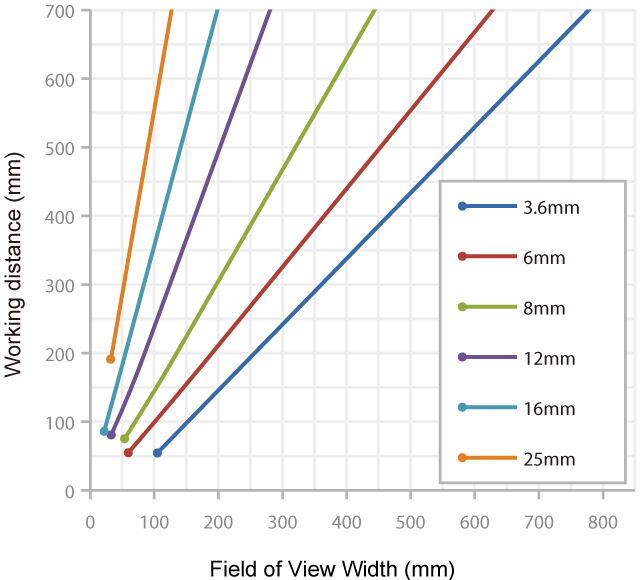

Horizontal Field of View
(640 × 480 (default))

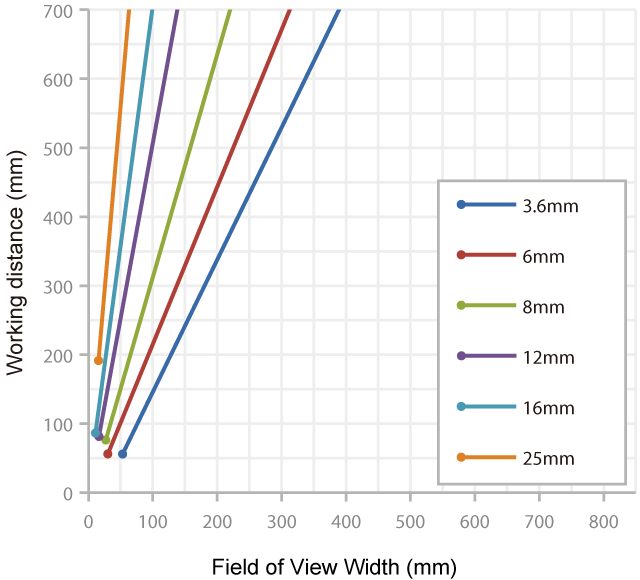

Horizontal Field of View
(640 × 480 (2 × image magnification mode))

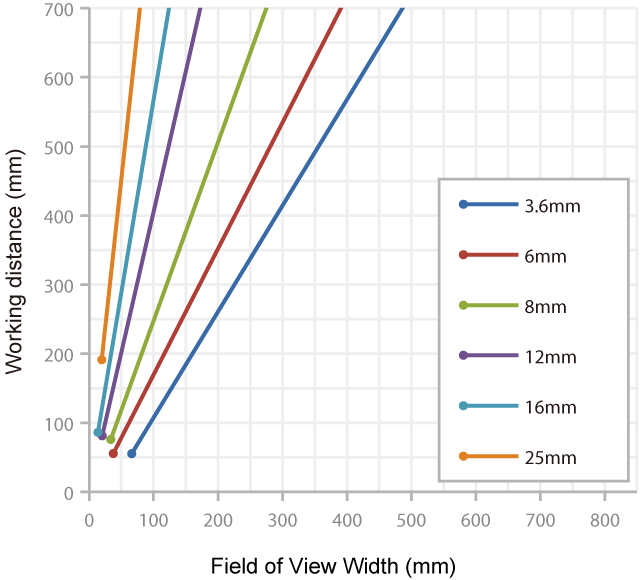

Horizontal Field of View
(800 × 600 (2 × image magnification mode))
