Energy Saving Support Software Energy Saving Support Software EcoAdviser

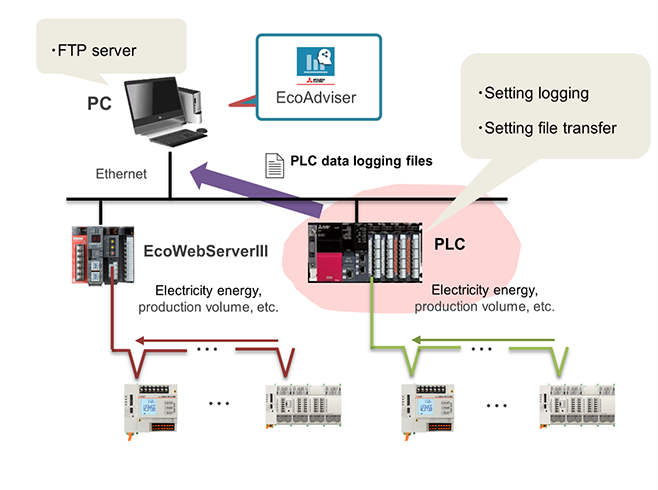

[Only applicable for AI diagnosis edition] Support PLC
It is now possible to collect data from the data logging files output by the PLC.
Even customers who have already purchased the product can update to the latest software version by downloading the necessary software from here.
By downloading and installing EcoAdviser from the Energy Saving Support Devices Software Download section on our website (Mitsubishi Electric FA Global site), you will be able to use the updated features.
File converter for EcoAdviser
This software is a tool that converts logging files of Logging Unit, Data Acquisition Software or MELSEC into formats that can be collected by EcoAdviser.
Converted files can be manually collected with EcoAdviser and used for graphs and reports.
File converter for EcoAdviser
Data conversion

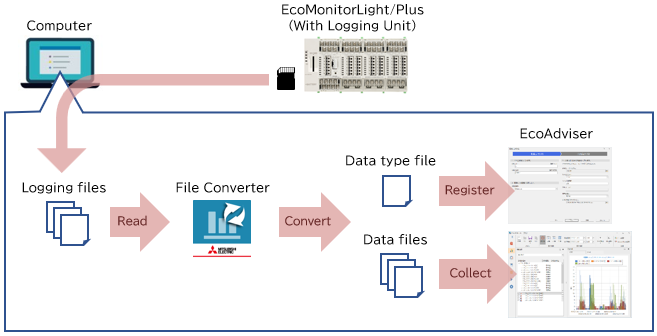

- ①Logging Unit
The data logged by the Logging Unit is imported from the SD memory card to the computer, and this software converts it into a format that can be collected by EcoAdviser. - ②Data Acquisition Software

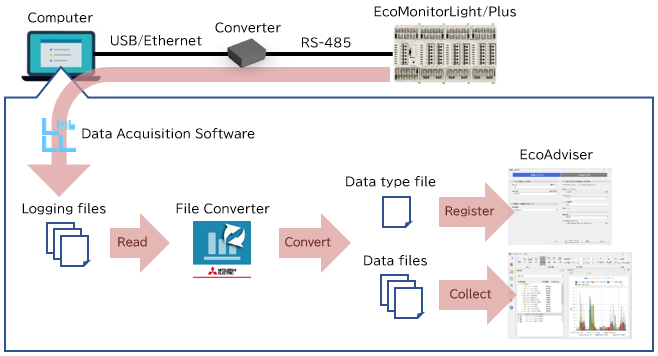

This software converts the data logged by the Data Acquisition Software into a format that can be collected by EcoAdviser. - ③MELSEC

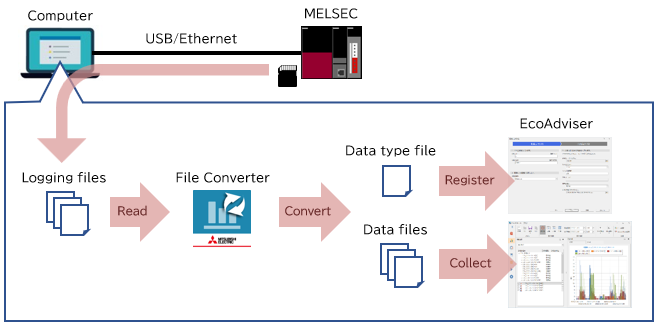

The data logged by MELSEC is imported into a computer, and this software converts it into a format that can be collected by EcoAdviser.
* Please refer to the MELSEC user's manual for how to import the MELSEC logging file to your computer.

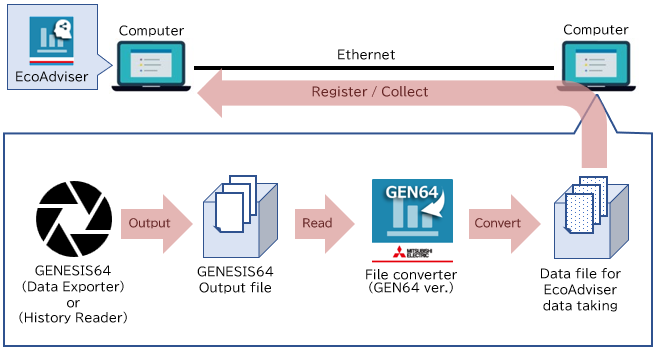

File converter for EcoAdviser (GENESIS64 Version)
File converter to convert data collected by GENESIS64 into format that can be collected by EcoAdviser.
Data from GENESIS64 can be used for diagnosis with EcoAdviser.
Please contact local sales representatives to find out more detail.
It can be downloaded from here.
Overview of automatic conversion (converting the latest measurement data)
