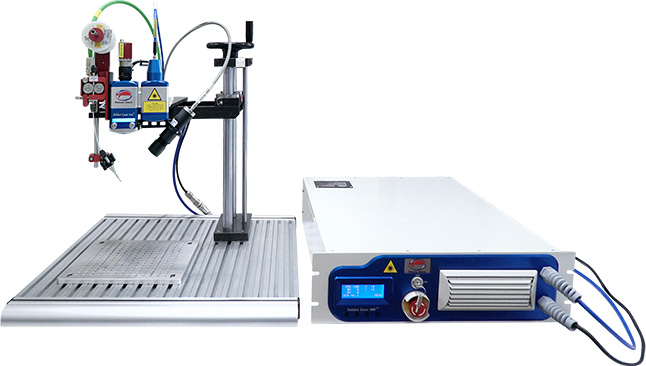

Solder Lase

Laser Solder Lase – A high-precision laser soldering system designed for the Electronics, HDD, PCBA, and Semiconductor industries. Equipped with a soldering laser head developed by Photonics Science and a high-quality fiber laser source from Germany, this system enables non-contact soldering, minimizing damage and defects. Its compact design allows easy installation, low maintenance, and efficient continuous operation.

Key Features:
- High precision with consistent repeatability
- Non-contact process to reduce workpiece damage
- Compact design for easy installation and space-saving
- Low maintenance for long-lasting performance
- Compatible with various solder wire types: Lead, Lead-Free, Resin Flux
- Ultra-fast temperature measurement at up to 10,000 data points per second

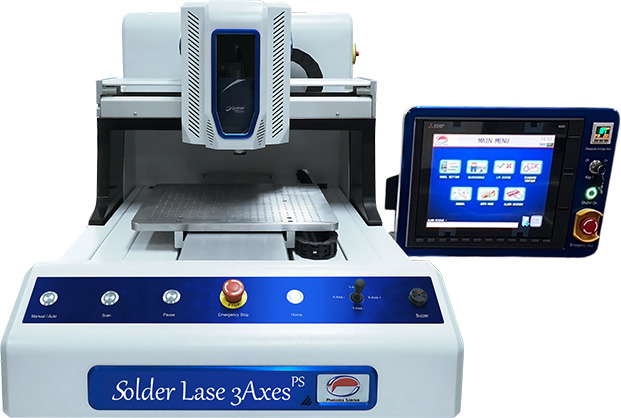

Solder Lase 3Axes PS

Solder Lase 3Axes PS - A high-precision laser soldering system with a CNC-controlled 3-axes gantry platform, designed for the Electronics, HDD, PCBA, and Semiconductor industries. Equipped with a soldering laser head or integrated with vision systems and positioning scanners developed by Photonics Science, this system provides non-contact soldering while enabling micron-level positioning for complex geometries. The gantry design ensures repeatable, high-accuracy soldering across diverse workpieces, allowing automatic alignment and real-time quality verification. Its compact, modular structure supports easy installation, low maintenance, and seamless continuous operation.

Key Features:
- High-precision CNC-controlled 3-axes motion for complex soldering tasks
- Non-contact process to minimize workpiece damage and defects
- Integrated vision systems and positioning scanners developed by Photonics Science for automatic alignment and real-time quality control
- Compact design for easy installation and space-saving
- Low maintenance for long-lasting, reliable performance
- Compatible with various solder wire types: Lead, Lead-Free, Resin Flux
- Ultra-fast temperature measurement at up to 10,000 data points per second

Laser Soldering with Robot System

Our laser soldering system features closed-loop temperature control from 100°C – 2200°C, ensuring precise and consistent soldering across all production processes. It supports both static and dynamic applications, with flexible programming tailored to each customer’s workflow.

The system can seamlessly integrate with robots for fast, accurate, and automated operation. Combined with vision cameras for real-time quality inspection and scanners for automatic alignment, it allows customers to:

Increase production speed and continuity
Minimize errors and defective parts
Adapt to various workpiece designs
Fully automate processes for maximum efficiency and ROI
Monitor and ensure quality for every component in real time

Customer Benefits:
Reduce errors and defective parts
Improve production efficiency and throughput
Flexible adaptation to different applications and designs
Compatible with all types of soldering tasks
Integration with robotics + vision systems + scanners for high-precision automated manufacturing

Laser Soldering with 3-Axes Gantry System

Our laser soldering system with a CNC-controlled 3-axes gantry platform provides highly precise motion control across X, Y, and Z directions, enabling accurate positioning for complex soldering tasks. With closed-loop temperature control ranging from 100°C to 2200°C, it ensures reliable and repeatable soldering results.

The gantry-based design supports both static and dynamic soldering, with programmable motion profiles tailored to each application. Integrated with vision systems and positioning scanners, it guarantees consistent quality and precise process control.

Key Capabilities:
- High-precision CNC-controlled 3-axes motion for soldering complex geometries
- Seamless integration with vision cameras and positioning scanners for real-time alignment and quality control
- Fully programmable motion profiles adaptable to various workpiece sizes and layouts
- Closed-loop temperature control for consistent solder quality
- Optimized for inline and batch production environments

Customer Benefits:
- Superior accuracy and repeatability in soldering operations
- Flexibility to handle diverse applications and product designs
- Scalable for both high-mix and high-volume production
- Reduced errors, rework, and downtime
- Enhanced automation potential with simple integration into existing production lines

Fast and Reliable Service for Customer Satisfaction

Photonics Science provides comprehensive services to ensure customers achieve maximum performance from our systems:

Installation & setup for immediate operation
Training for operators and engineers to ensure safe and proper usage
Preventive maintenance and inspection to minimize downtime and extend machine lifespan
Supply of spare parts and consumables with reliable local support
Expert consultation by our engineering team throughout the entire product lifecycle
