MELSEC MX Controller - MX-F model
Compact integrated controller for standalone machines and modular systems

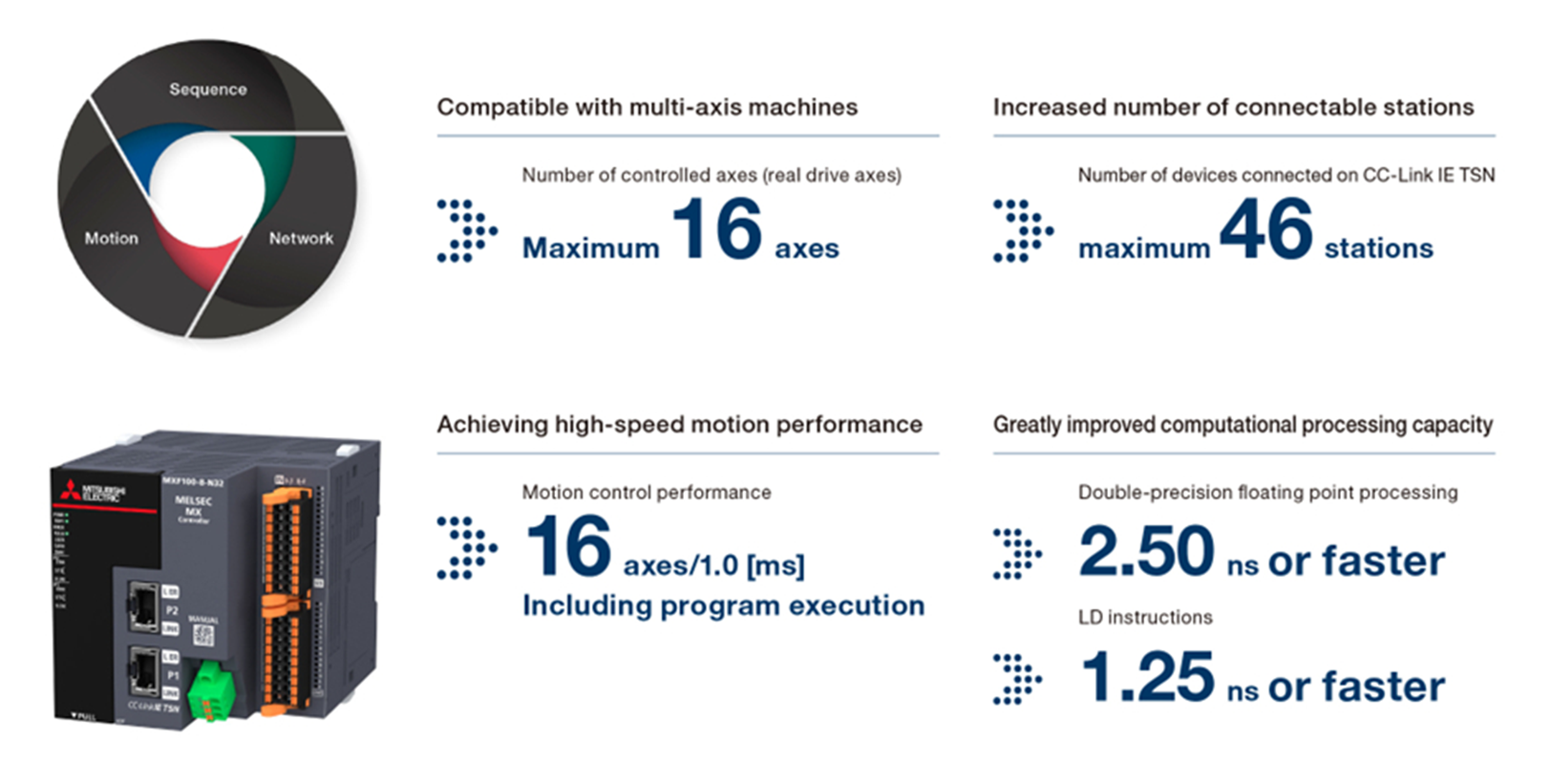

The MX-F model integrates three types of control on one platform:
Sequence
Motion
Network
With the MX-F model, users can build compact and flexible control systems by combining with MELSEC iQ-F Series modules — ideal for standalone machines and
modular equipment.
MX-F Concept
High-speed control in a compact design
Integrated into one controller, delivers:
High-speed motion control
Stable, high-accuracy performance
Efficient synchronization for standalone machines
Optimized for installation space while maintaining advanced control performance

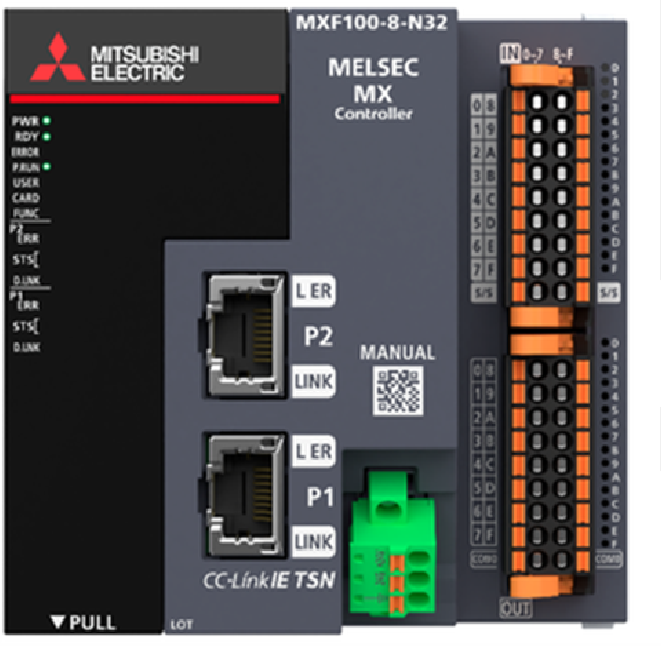

MX-F model details
| Model | Number of controllable axes (Real drive axes) |
|---|---|
| MXF100-8-□32*2 | 8 axes |
| MXF100-16-□32*2 | 16 axes |

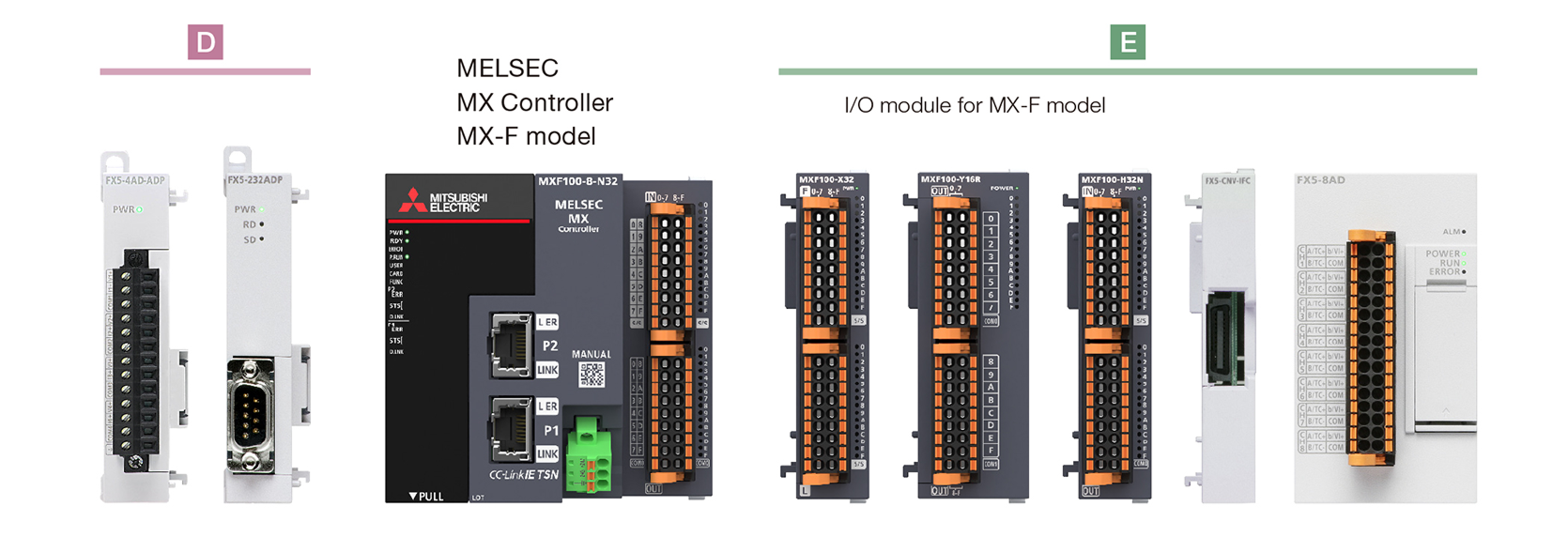

MX-F is compatible with and can be used with products in the MELSEC iQ-F Series according to the latest catalog.
Key benefits
Flexible I/O expansion
Integrated servo and network control
Fast deployment for standardized machines

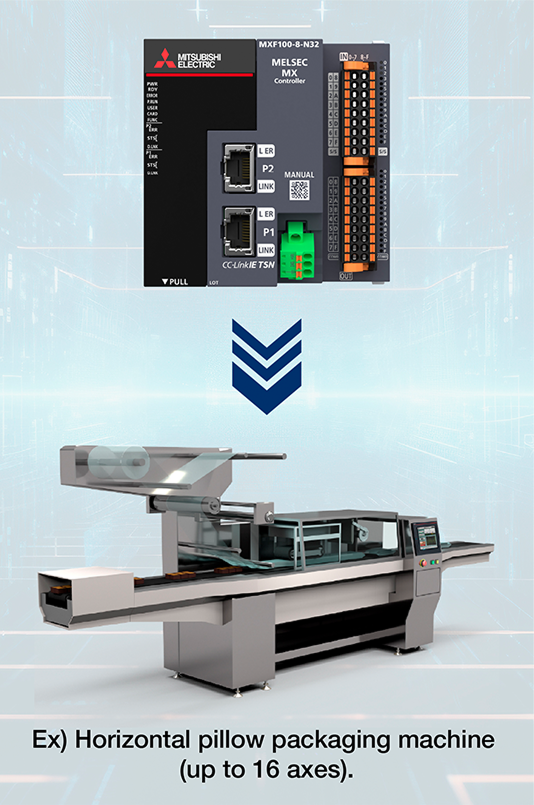

Ideal applications
Packaging machines
Automated assembly machines
Standalone processing equipment
Cost-optimized modular systems
MX-F compatibility
MX-F can be combined with MELSEC iQ-F Series modules and devices, ensuring:
System-wide synchronization
Easy configuration
Future-ready expansion

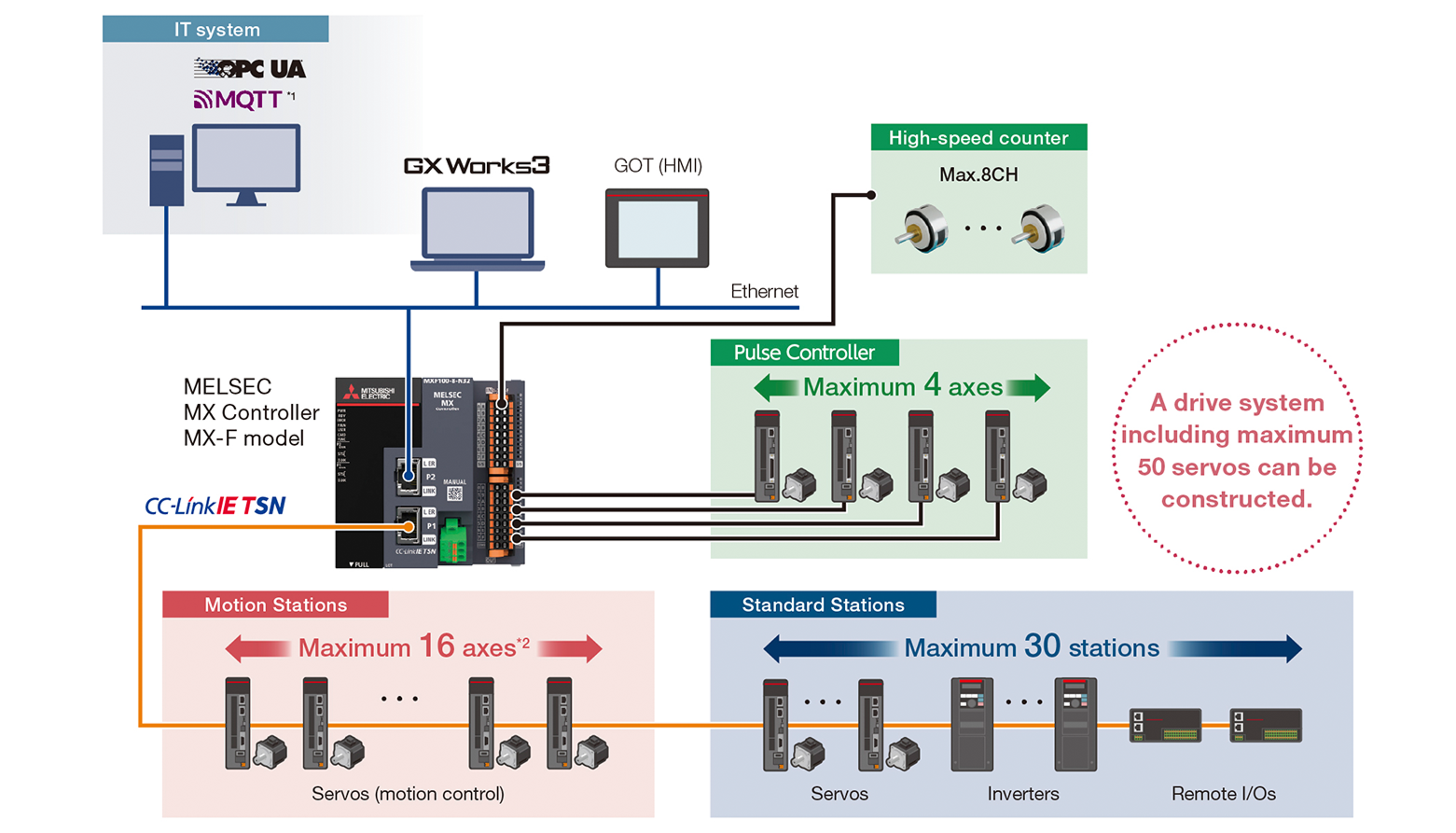

MX-F system configuration example
The MX-F model can be configured with:
Servo amplifier
Network module
I/O module
HMI
Ideal for control systems requiring:
Small-to-medium scale system design
High-speed performance
Optimized installation space and cost
