Improving productivity
Are you facing these challenges?
Large systems with insufficient
CPU performance
Lack of synchronization accuracy
at
high speeds
Need to customize equipment for specific applications
Solutions
In large-scale automation systems, productivity depends not only on processing speed, but also on how effectively sequence, motion, and network control are integrated.

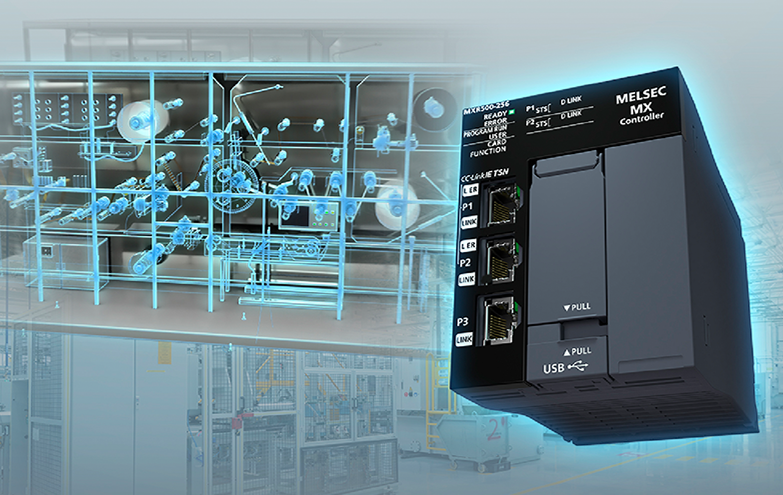

The MELSEC MX Controller is designed to directly solve these challenges through one unified control architecture.

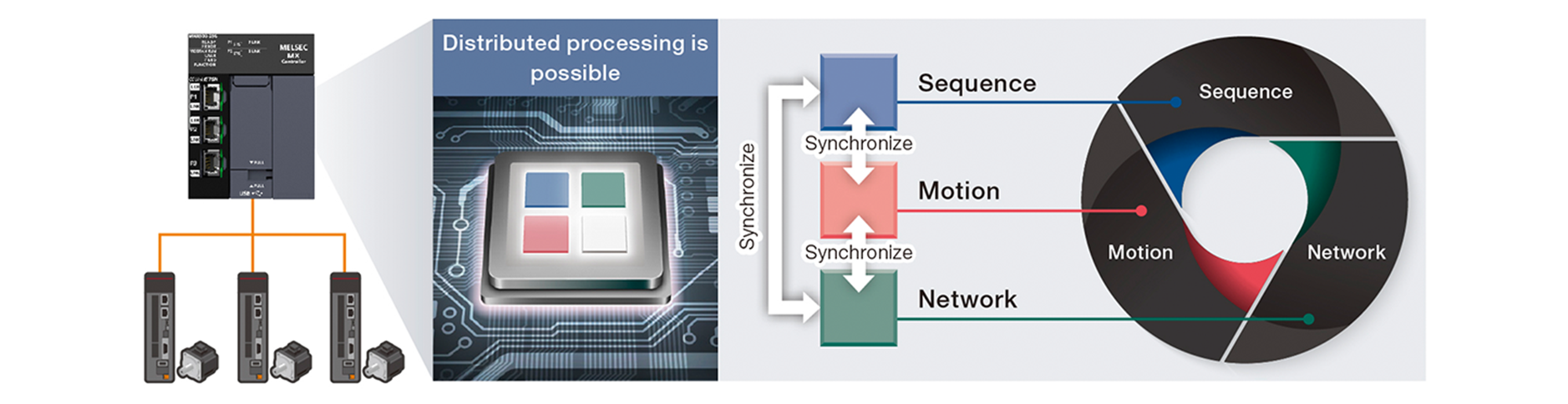

High performance through multi-core MPU and parallel processing
High-speed multi-core MPU with double-precision floating-point processing for high-accuracy control
Sequence, motion, and network processing distributed across dedicated cores
Parallel processing architecture instead of conventional
sequential control
Reduced operation cycle time and increased system throughput

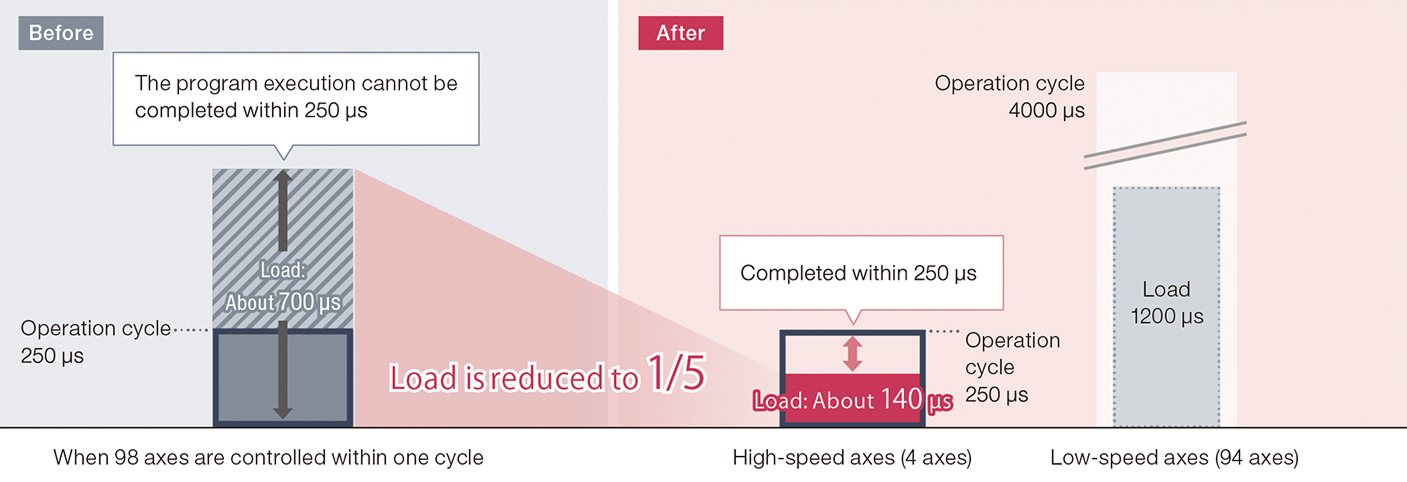

Monitor and optimize processing load by core
MX Controller enables:
Monitoring the processing load
of
each CPU core
Distributing and adjusting load for
optimized control performance
Visualizing operation cycles and
processing status
As a result, the system maintains optimized performance even with a large number of axes.

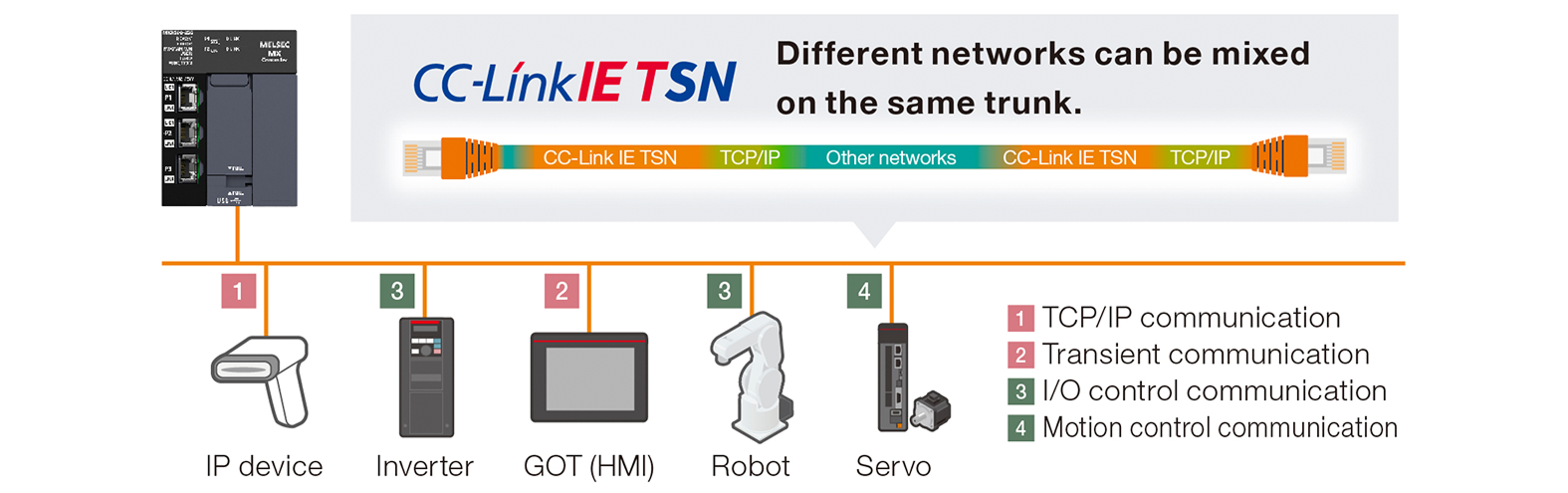

CC-Link IE TSN network
Network platform for high-speed control
The MX Controller uses CC-Link IE TSN, an industrial network based on Time-Sensitive Networking (TSN),
enabling real-time control and IT communication on one unified network infrastructure.
With CC-Link IE TSN, the system achieves:
High-speed, high-accuracy synchronization across multiple
devices, including: servos, robots, inverters, HMIs, and I/O
Stable response time regardless of the number of
connected devices, even in large-scale systems
Integration of real-time control data and
IT communication
data on the same network trunk
Value MX Controller brings to manufacturing
Improve productivity for
multi-axis systems
Stable control even at
high speeds
Flexible customization for diverse machines and applications
Reduced system complexity
and overall cost
